Step by step intruction

In this section, we will use the example of Be2Si(https://iopscience.iop.org/article/10.1088/1367-2630/ab0d95) to demonstrate the calculation process and plot the computational results.

Structure

open

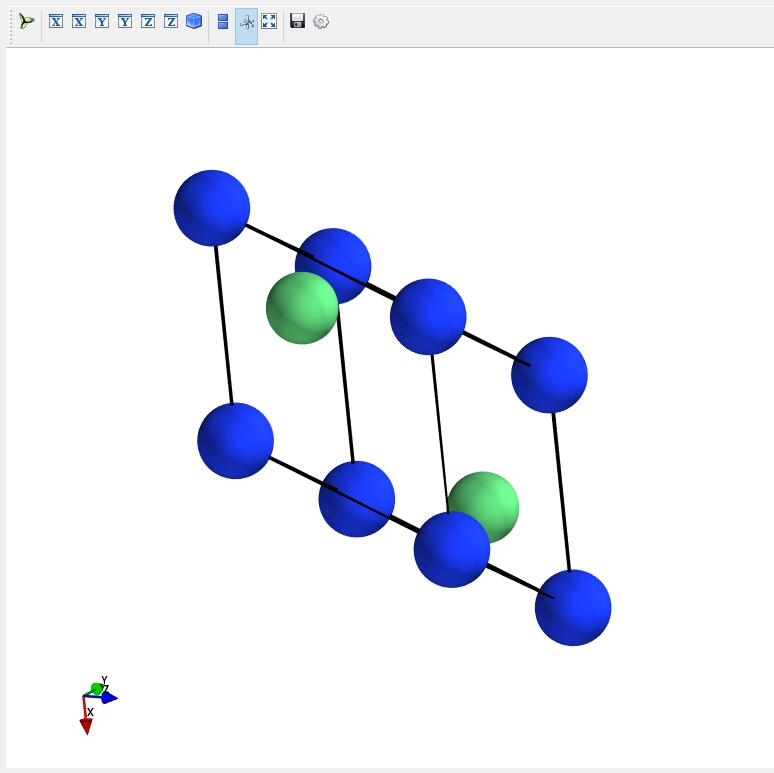

Open a atomic structure. The primitive cell of Be₂Si is shown in the following figure.

Here we present the POSCAR of Be₂Si.

mp-1009829_Be2Si
    1.00000000000000
     3.7365268509900660    0.0000000000000000    0.0000000000000000
     1.8682634254950330    3.2359271748599219    0.0000000000000000
     1.8682634254950330    1.0786423916199739    3.0508613983816879
    Be   Si
     2     1
Direct
      0.7500000000000000  0.7500000000000000  0.7500000000000000
      0.2500000000000000  0.2500000000000000  0.2500000000000000
      0.0000000000000000  0.0000000000000000  0.0000000000000000

      0.00000000E+00  0.00000000E+00  0.00000000E+00
      0.00000000E+00  0.00000000E+00  0.00000000E+00
      0.00000000E+00  0.00000000E+00  0.00000000E+00

build

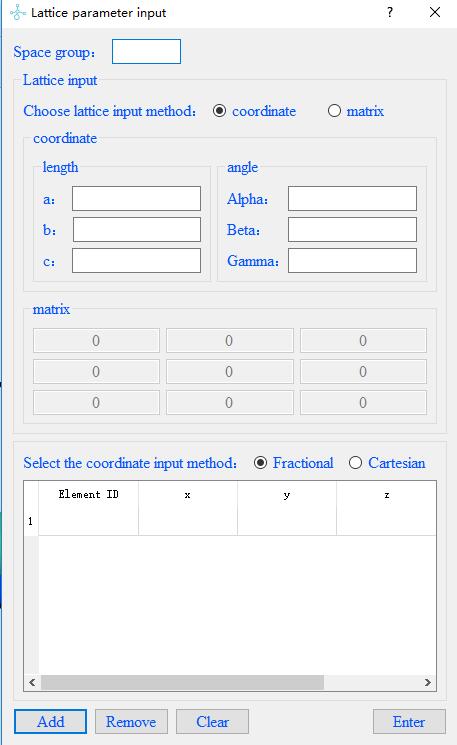

Click on the menubar File--Build structure to input of lattice parameters: first input the space group of the material, and then select the input mode coordinate or matrix. In coordinate mode, you need to enter the length of the three sides and the degrees of the three included angles; in matrix mode, you need to enter a matrix. Finally, choose the coordinate type Fractional or Cartesian.

supercell

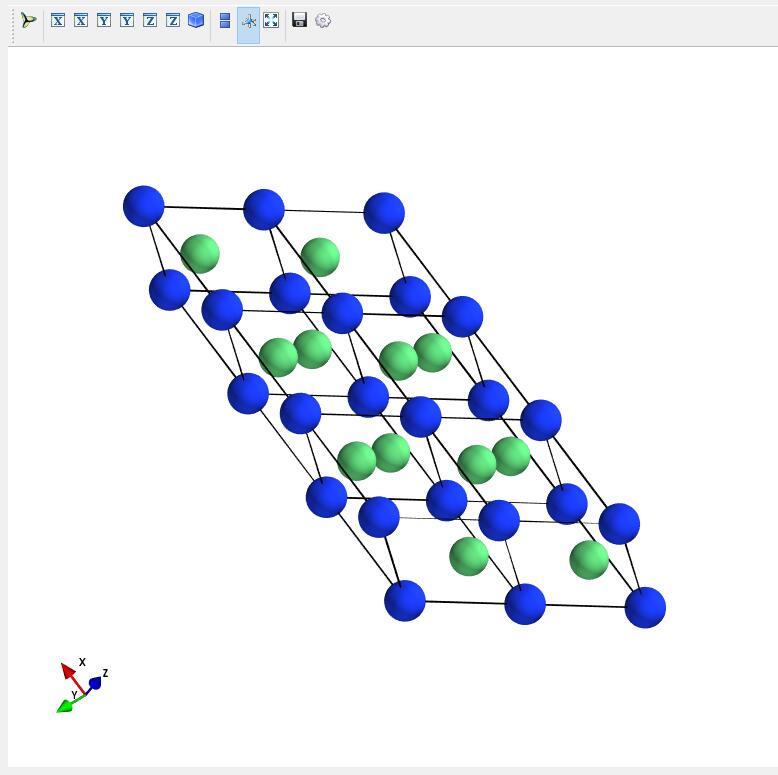

Build a supercell for a opened crystal structure.

Settings

Node Connection

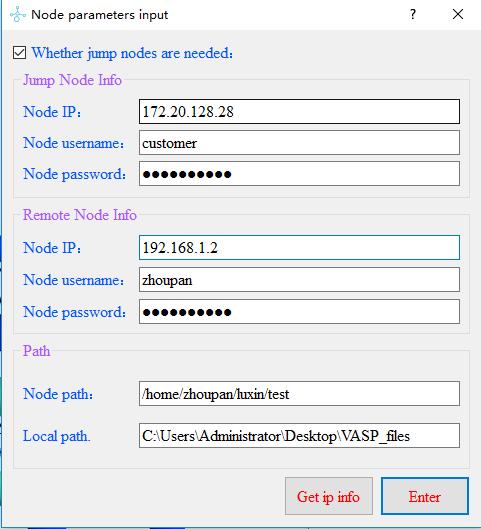

Click on Tools--Supercell on the menubar to set up the node connection. After the setup is complete, you can drop computational tasks on the Linux cluster directly through the Abinito Studio windows side. There are two node connection modes, one is to jump to the node, and the other is not. When we do not check the check box to do not need to jump to the node mode, the jump node information can’t be input at this time, enter the remote node ip, user name, password, path information, the local path defaults to the desktop to generate the VASP_files folder. When we check the checkbox to switch to the node mode, in addition to the remote node information, we also need to enter the ip, user name, password, and path information of the jump node. The local path will generate the VASP_files folder by default on the desktop.

In order to avoid the need to manually enter each node connection, you can save the node information in node_information.txt as follows, and click Get ip info in the dialog to automatically obtain the information.

# Whether a jump node is used ? (True or False)
jump : True

# Information for the jump server
jump_ip：172.20.128.28
jump_username：customer
jump_password：xxxxxxxxxx

# Information for the calculation node
cal_ip：192.168.1.2
cal_username：zhoupan
cal_password：xxxxxxxxxx

# local path and remote path
remote_path：/home/zhoupan/luxin/test
local_path：C:\Users\Administrator\Desktop\VASP_files

Calculation

scf

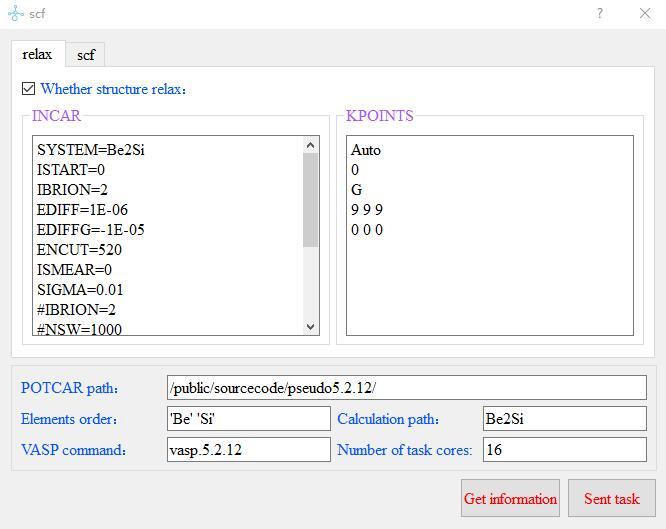

After Setting--Node Connection, click the menubar Calculation--VASP--scf for scf calculation, the scf input panel pops up, enter the INCAR and KPOINTS files required for static calculation, and the POTCAR path, element order, calculation path, VASP command and kernel number of the task respectively, click Sent task, complete the task casting from the windows side. Finish the task drop from windows side to Linux. At the same time, a folder VASP_files will be generated on the desktop by default, and the output data of the calculation will be saved in this folder. In order to avoid users need to input information manually every time they cast tasks, you can save these parameters in default--scf.txt, and next time when you input them, you can click Get information to fill them with one click.

The contents and format of the default--scf.txt file are as follows:

 # relax_INCAR
 SYSTEM=Be2Si
 ISTART=0
 IBRION=2
 EDIFF=1E-06
 EDIFFG=-1E-05
 ENCUT=520
 ISMEAR=0
 SIGMA=0.01
 #IBRION=2
 #NSW=1000
 POTIM=0.25
 PREC=Accurate
 NELM=200
 #ISPIN=2
 LORBIT=11

 # relax_KPOINTS
 Auto
 0
 G
 9 9 9
 0 0 0

 # scf_INCAR
 SYSTEM=MoS2
 ISTART=0
 ICHARG=2

 ENCUT=400
 ALGO=Fast
 IALGO=38
 NELM=100
 NELMIN=2
 NELMDL=-5
 EDIFF=1E-7
 PREC=A

 ISMEAR=0
 SIGMA=0.02

 LREAL=Auto

LCHARG=.T.
LWAVE=.F.
LVTOT=.F.

 # scf_KPOINTS
 Automatic generation
 0
 Gamma
 11   11    11
 0.0  0.0   0.0

 # POTCAR_path
 /public/sourcecode/pseudo5.2.12/

 # Elements_order
 'Be' 'Si'
 # Calculation_path
 Be2Si
 # VASP_command
 vasp.5.2.12
 # Number_of_task_cores
 16

The operation of scf_noncal, band, band_noncal, DOS, phonon, and wannier is the same as the use of scf.

scf_noncal

band

band_noncal

DOS

phonon

wannier

Plot

Bands

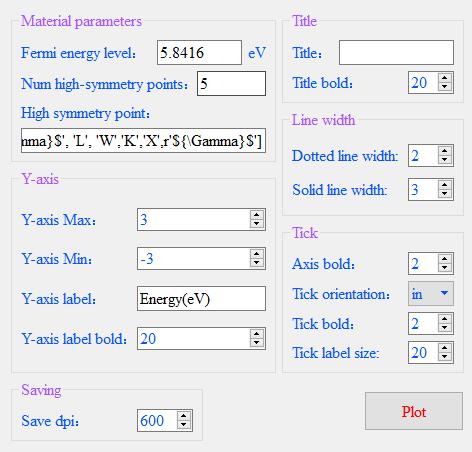

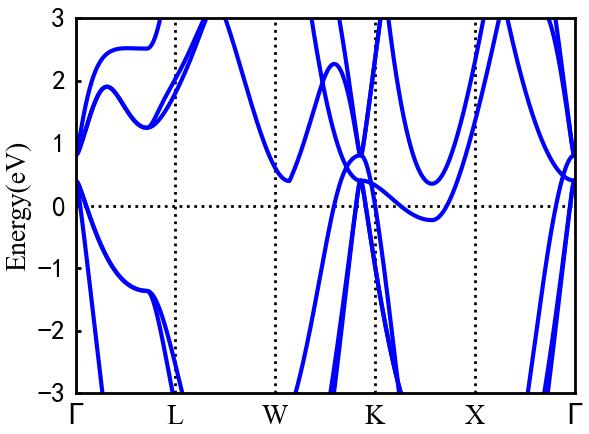

To plot the energy band diagram, click Plot--Bands on the menubar and select the EIGENVAL file of Be2Si. Enter the relevant parameters in the parameter box that pops up. Be2Si has a Fermi level of 5.8416eV and five high symmetry points Gamma, L, W, K, and X. High Symmetry Points is entered as a list, each element is a string and supports Latex syntax. Other parameters are the minimum and maximum values of the Y-axis, the label of the Y-axis, and the font size of the label, the title, and the font size. You can also set the thickness of the dashed and solid lines. Finally, there is the thickness of the coordinates, the direction, and the thickness of the scale. And the size of the scale labels. Then click Plot. The parameter input panel is shown in the figure. The result is displayed in the 2D drawing area, as shown in the figure.

Projected Band

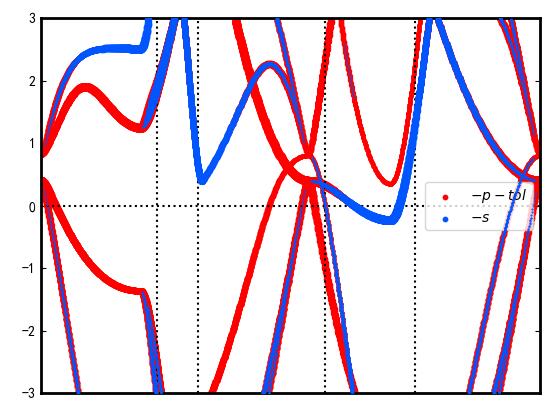

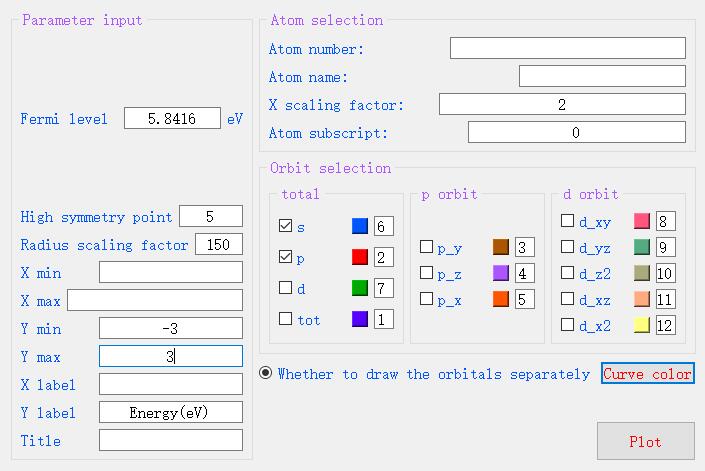

To plot the projected band, click on Plot--Projected Band on the menu bar and select the PROCAR file for Be2Si. Enter the relevant parameters in the pop-up parameter box. the Fermi level of Be2Si is 5.8416eV, and there are five high symmetry points. the minimum maximum value of X-axis has to be not entered by default, and the wide range of Y-axis is selected from -3 to 3. the X-axis scaling factor is selected from 2, which means that the X coordinate points are intermittently taken to draw the plot, and 2 adjacent points are curved a point to draw the plot, which will effectively reduce the data processing and time of drawing. when for PROCAR larger files, X-axis scaling factor can choose 3 or 4, the first to come up with the overall graph, and then choose this parameter is 1 to draw all the data graph. For the orbit selection part, you only need to check the orbit you want to draw, choose any color you want, and then click Plot and wait. The projected bands of the S and P orbitals of Be2Si’s Be atom are shown in the two-dimensional plot area, as shown. The input of panel parameters is shown in the figure below.

DOS

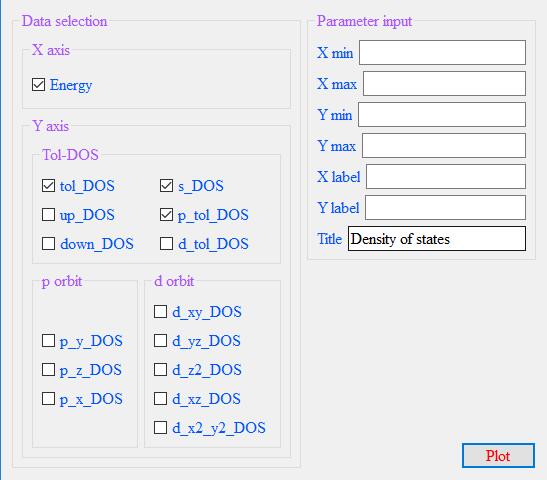

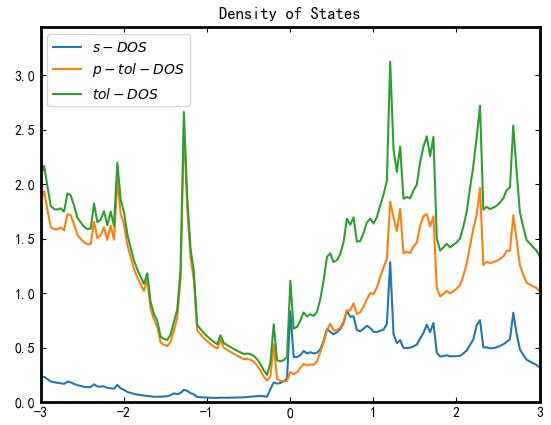

To plot the density of states, click on Plot - DOS on the menubar and select the DOSCAR file for Be2Si. Enter the relevant parameters in the parameter box that pops up. Select the checkboxes of the orbitals to be plotted. As shown in the figure, check the total orbital contribution, s-orbit contribution and p-orbit contribution of Be2Si, click Plot, and the panel input parameters and plot output as shown in the figure.

CHGCAR 2D

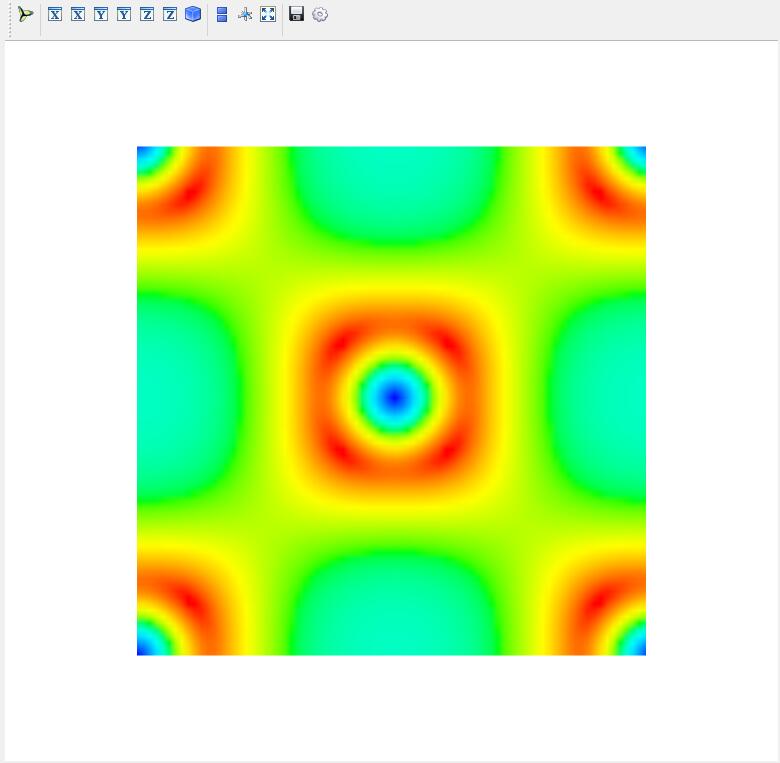

To draw a 2D plot of charge density, from the menubar click Plot--CHGCAR 2D and select the CHGCAR file for Be2Si. Input relevant parameters in the popup parameter box and click Draw to Enter the 2D of charge density in the 3D area.

CHGCAR 3D

To draw a 3D plot of charge density, from the menubar click Plot–CHGCAR 3D and select the CHGCAR file for Be2Si. Input relevant parameters in the popup parameter box and click Draw to Enter the 3D of charge density in the 3D area.
